2.2mm small diameter
Direct view 90°
360-degree articulation
400×400 pixels
Front LED illumination
3-100mm depth of view
10.1″ touch screen
Super thin 2.2mm side view probe, can easily enter into most of the narrow space without harming the facility.
180 or 360 degree articulation, flexible operation with short camera head, can reach the inspection area efficiently.
Wide viewing angle and customized depth of view with high brightness LED, can see the both sides clearly.
It has a wide range of applications and can be used in a variety of endoscope detection scenarios. Such as Automobile Manufacturing, Medical Pipeline, Mechanical Casting, Precision Casting, Aerospace, Aviation, Energy Power, Special Tubes and Drug Control.

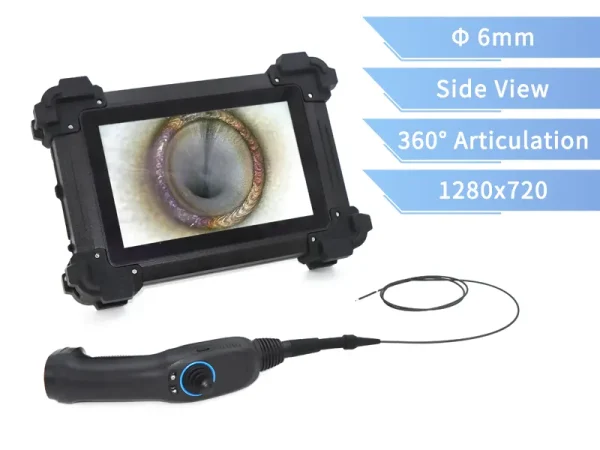

The M3 Series features a 10.1” HD LCD screen that delivers clear, high-quality images for precise inspection. This versatile device is a must-have for automotive, aviation, manufacturing, plumbing and construction professionals, enabling seamless inspection of engines, pipelines, machinery, and more. Equipped with reinforced anti-drop corner airbags, the main unit is highly resistant to impact, ensuring ultra-durable performance even in harsh industrial environments.
Equipped With A 10.1” HD Touch-screen LCD
Providing large-size, real-time inspection images with excellent clarity.
The Articulation Control Joystick Enables Easier And More Precise Maneuvering
It is equipped with quick-access keys for brightness adjustment, image capture, and light control, making operation faster and more convenient.
Foldable Anti-Slip Stand
The device comes with a foldable anti-slip stand that can be securely placed on a desktop, enabling hands-free operation and making it ideal for inspection in fixed locations.
Reinforced Anti-Drop Corner Airbags
The main unit is protected by reinforced anti-drop corner airbags, effectively reducing damage from accidental drops and ensuring reliable performance on-site.
One Device Compatible For Multiple Uses
The whole series is compatible with probes of different diameters such as 1.0mm/1.2mm/1.7mm/2.2mm/2.8mm/3.0mm/3.9mm/6mm/8mm, with its fast exchange system, you could change the probes within 5 seconds.
Long Time Working
Long time working condition, working 6 hours when battery is full.
| Monitor | |
| Dimensions / Weight | 342 x 242 x 87 mm / 2.5 kg |
| Display Screen | 10.1″ LCD touchable screen with 1280 x 1200 resolution |
| Control System | Mechanical joystick, 180 or 360-degree rotation |
| Functions | Image capture, video recording, playback, articulation, illumination control |
| Image Control | Zoom, image and video playback, freeze-frame, flip image |
| File Management | Auto or manual file folder creation, rename files |
| Brightness Control | 5 level adjustment |
| Operating System | Real-time multifunctional operating system |
| Operating Method | Touch screen and press button |
| Language | 3 Languages |
| White Balance | Automatic or manual |
| Exposure Mode | Automatic |
| Firmware Update | Via SD card service pack |
| Image Format/Video Format | JPEG, AVI |
| I/O port | SD card, HDMI port , Type-C |
| Power | Rechargeable lithium-ion battery, 4h long running time |
| Storage | 32 GB high-speed SD card (Up to 128 GB） |
| Full System | Monitor, handset, charging adapter, aviation cable, 32 GB SD card, SD card reader |
| Compatibility | Interchangeable probes for all M3 series |
| Working Temperature | -10ºC to 50ºC (14ºF to 122ºF) |
| Storage Temperature | -20º to 60ºC (-4ºF to 140ºF) |
| Relative Humidity | 90% max, non-condensing |
| Defence | Insertion tube and probe:IP67 Monitor: IP55 |
| Insertion Probe | |
| Diameter | 2.2 mm |
| Resolution | 400 x 400 pixels |
| Direction of View | Direct 90° |
| Depth of Field (DOF) | 3-100mm |
| Field of View (FOV) | 120° |
| Illumination Source / Type | LED / White |
| Probe Articulation Range | 130°±10° |
| Cable Material | Tungsten Steel |
| Probe Material | Stainless Steel |
| Probe Length | 7.8mm |
| Cable Length | 1/1.5/2m |
| Place of Origin: | Wuxi City,Jiangsu Province |
| Brand Name: | Kunscope |
| Certification: | ISO9001,CE |
| Model Number: | M3KL22S |
| Minimum Order Quantity: | 1 |
| Price: | Request a quote |
| Packaging Details: | 1 set in a case |
| Delivery Time: | Generally it is 5-8 working days if the gods are in stock, or it is 15-20 working days if not in stock.It is according to stock quantity situation. |
| Payment Terms: | 100% TT in advance |
