The 3.9mm side view inspection probe is slim and flexible, navigating spaces with ease to ensure accurate inspection.
The 3.9mm probe provides wide viewing angle up to 1280*720 pixels.Our powerful Optical Fiber lighting deliver bright, clear visuals, very durable.
It has a wide range of applications and can be used in a variety of endoscope detection scenarios. Such as Automobile Manufacturing, Medical Pipeline, Mechanical Casting, Precision Casting, Aerospace, Aviation, Energy Power, Special Tubes and Drug Control.

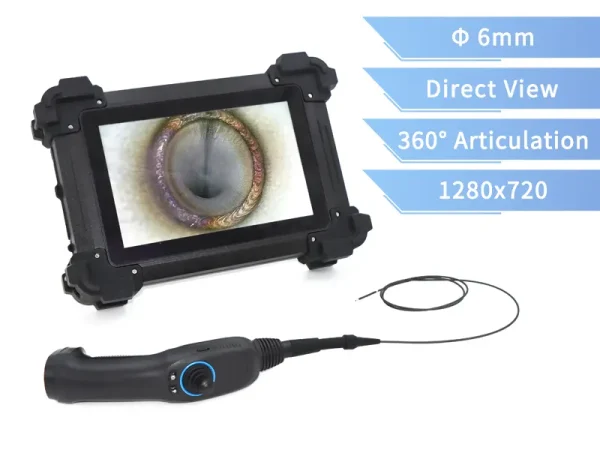

The M3 Series features a 10.1” HD LCD screen that delivers clear, high-quality images for precise inspection. This versatile device is a must-have for automotive, aviation, manufacturing, plumbing and construction professionals, enabling seamless inspection of engines, pipelines, machinery, and more. Equipped with reinforced anti-drop corner airbags, the main unit is highly resistant to impact, ensuring ultra-durable performance even in harsh industrial environments.
Equipped With A 10.1” HD Touch-screen LCD
Providing large-size, real-time inspection images with excellent clarity.
The Articulation Control Joystick Enables Easier And More Precise Maneuvering
It is equipped with quick-access keys for brightness adjustment, image capture, and light control, making operation faster and more convenient.
Foldable Anti-Slip Stand
The device comes with a foldable anti-slip stand that can be securely placed on a desktop, enabling hands-free operation and making it ideal for inspection in fixed locations.
Reinforced Anti-Drop Corner Airbags
The main unit is protected by reinforced anti-drop corner airbags, effectively reducing damage from accidental drops and ensuring reliable performance on-site.
One Device Compatible For Multiple Uses
The whole series is compatible with probes of different diameters such as 1.0mm/1.2mm/1.7mm/2.2mm/2.8mm/3.0mm/3.9mm/6mm/8mm, with its fast exchange system, you could change the probes within 5 seconds.
Long Time Working
Long time working condition, working 6 hours when battery is full.
| Monitor | |
| Dimensions / Weight | 342 x 242 x 87 mm / 2.5 kg |
| Display Screen | 10.1″ LCD touchable screen with 1280 x 1200 resolution |
| Control System | Mechanical joystick, 360-degree rotation |
| Functions | Image capture, video recording, playback, articulation, illumination control |
| Image Control | Zoom, image and video playback, freeze-frame, flip image |
| File Management | Auto or manual file folder creation, rename files |
| Brightness Control | 5 level adjustment |
| Operating System | Real-time multifunctional operating system |
| Operating Method | Touch screen and press button |
| Language | 3 Languages |
| White Balance | Automatic or manual |
| Exposure Mode | Automatic |
| Firmware Update | Via SD card service pack |
| Image Format/Video Format | JPEG, AVI |
| I/O port | SD card, HDMI port , Type-C |
| Power | Rechargeable lithium-ion battery, 4h long running time |
| Storage | 32 GB high-speed SD card (Up to 128 GB） |
| Full System | Monitor, handset, charging adapter, aviation cable, 32 GB SD card, SD card reader |
| Compatibility | Interchangeable probes for all M3 series |
| Working Temperature | -10ºC to 50ºC (14ºF to 122ºF) |
| Storage Temperature | -20º to 60ºC (-4ºF to 140ºF) |
| Relative Humidity | 90% max, non-condensing |
| Defence | Insertion tube and probe:IP67 Monitor: IP55 |
| Insertion Probe | |
| Diameter | 3.9 mm |
| Resolution | 1280 x 720 pixels |
| Direction of View | Direct 0° |
| Depth of Field (DOF) | 10 – 100mm |
| Field of View (FOV) | 120° |
| Illumination Source / Type | Optic Fiber / White |
| Probe Articulation Range | 130°±10° |
| Cable Material | Tungsten Steel |
| Probe Material | Stainless Steel |
| Probe Length | 11.4mm |
| Cable Length | 1/1.5/2/3m |
| Place of Origin: | Wuxi City,Jiangsu Province |
| Brand Name: | Kunscope |
| Certification: | ISO9001,CE |
| Model Number: | M3N39R |
| Minimum Order Quantity: | 1 |
| Price: | Request a quote |
| Packaging Details: | 1 set in a case |
| Delivery Time: | Generally it is 5-8 working days if the gods are in stock, or it is 15-20 working days if not in stock.It is according to stock quantity situation. |
| Payment Terms: | 100% TT in advance |
