6.0mm diameter
Direct view 0°
360-degree articulation
1280×720 pixels
Front LED illumination
10-100mm depth of view
5″ touch screen
The 6.0mm inspection probe is built for versatility, delivering exceptional imaging clarity in a wide range of industrial inspections.
The 6.0mm probe provides wide viewing angle up to 1280*720 pixels.Our powerful Optical Fiber lighting deliver bright, clear visuals, very durable.
It has a wide range of applications and can be used in a variety of endoscope detection scenarios. Such as Automobile Manufacturing, Medical Pipeline, Mechanical Casting, Precision Casting, Aerospace, Aviation, Energy Power, Special Tubes and Drug Control.

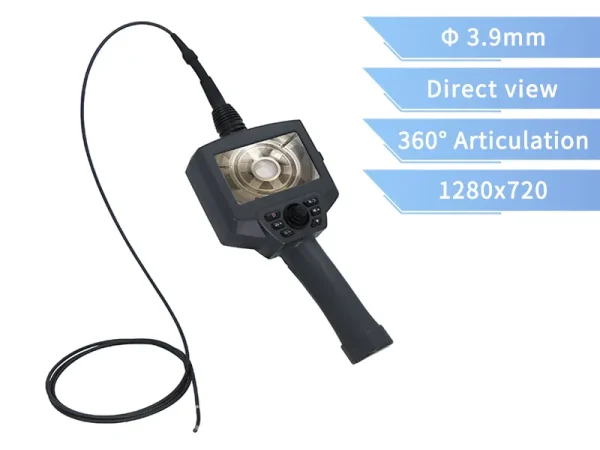

The SV+ Series is a portable, hand-held industrial borescope designed for various industries and applications. Featuring an integrated lightweight design, a high-density tungsten braided probe (99.02% tungsten), and a 5-inch touch screen, it delivers 1280×720 high-definition imaging. The system is compatible with both 3.9mm and 6.0mm probes, providing flexible solutions for various inspection needs.
Hand-held Integrated Design
Lightweight and portable – Easy to carry and ideal for on-site inspections.
Brighter Illumination, Enhanced Inspection In Large Spaces
Provides clear visibility even in dark or wide inspection areas,while the 360 degree rotating head allows for comprehensive assessments from various angles.
Compatible With 4mm And 6mm Probes
Quick and easy replacement – Flexible for different applications and saves operation time.
Industrial-grade Reliability
The probe has IP67 protection + more than 99% tungsten steel cable, which can withstand harsh environments such as oil pollution, complicated temperature (-10℃~50℃), and vibration;
Cost-effective Solution
Ideal for customers with limited budgets while ensuring reliable performance.
Long Battery Life
Intelligent power system with rechargeable high-density lithium battery, could offer at least 4h running time, full power supports full inspection of 8-10 engine cylinders (actual test conditions)
| Monitor | |
| Dimensions / Weight | 146 x 282 x 100 mm / 0.7 kg |
| Display Screen | 5″ LCD touchable screen with 1280 x 720 resolution |
| Control System | Mechanical joystick, 360-degree rotation |
| Functions | Image capture, video recording, playback, articulation, illumination control |
| Image Control | Zoom, image and video playback, freeze-frame, flip image |
| File Management | Auto or manual file folder creation, rename files, remark photos |
| Brightness Control | 7 level adjustment |
| Operating System | Real-time multifunctional operating system |
| Operating Method | Touch screen and press button |
| Language | 16 Languages |
| White Balance | Automatic |
| Exposure Mode | Automatic |
| Firmware Update | Via SD card service pack |
| Image Format/Video Format | JPEG, MP4 |
| I/O port | SD card, HDMI port , Type-C |
| Power | Rechargeable lithium-ion battery, 4h long running time |
| Storage | 32 GB high-speed SD card (Up to 128 GB） |
| Full System | Monitor, insertion probe, charging adapter, HDMI cable, Type-C cable, 32 GB SD card, SD card reader |
| Compatibility | Interchangeable probes for all SV+ series |
| Working Temperature | -10ºC to 50ºC (14ºF to 122ºF) |
| Storage Temperature | -20º to 60ºC (-4ºF to 140ºF) |
| Relative Humidity | 90% max, non-condensing |
| Defence | Insertion tube and probe:IP67 Monitor: IP55 |
| Insertion Probe | |
| Diameter | 6.0 mm |
| Resolution | 1280 x 720 pixels |
| Direction of View | Direct 0° |
| Depth of Field (DOF) | 10 – 100mm |
| Field of View (FOV) | 120° |
| Illumination Source / Type | LED / White |
| Probe Articulation Range | 130°±10° |
| Cable Material | Tungsten Steel |
| Probe Material | Stainless Steel |
| Probe Length | 9mm |
| Cable Length | 1/1.5/2/3/5/8m |
| Place of Origin: | Wuxi City,Jiangsu Province |
| Brand Name: | Kunscope |
| Certification: | ISO9001,CE |
| Model Number: | SPJL60D |
| Minimum Order Quantity: | 1 |
| Price: | Request a quote |
| Packaging Details: | 1 set in a case |
| Delivery Time: | Generally it is 5-8 working days if the gods are in stock, or it is 15-20 working days if not in stock.It is according to stock quantity situation. |
| Payment Terms: | 100% TT in advance |
