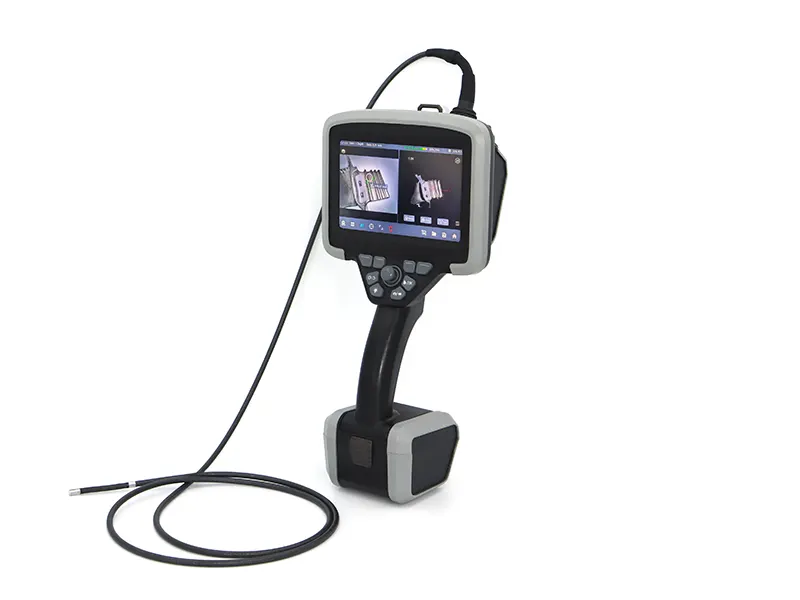

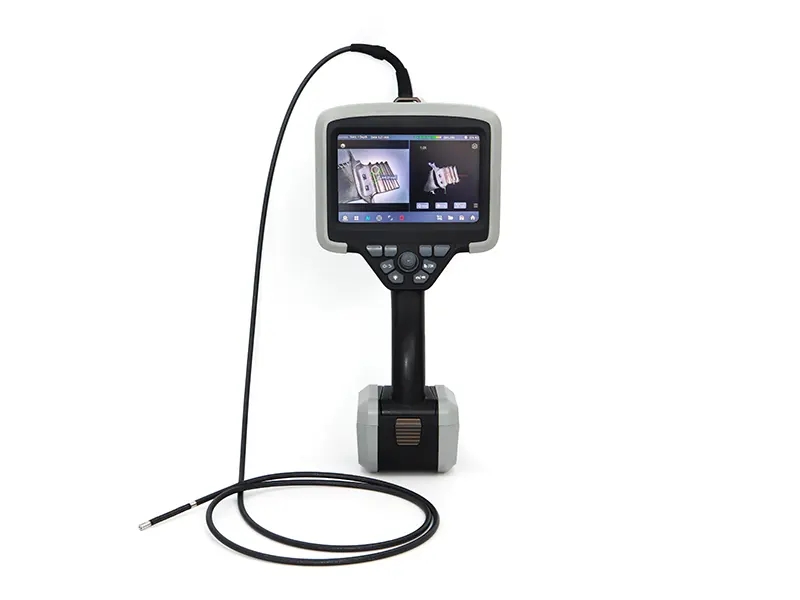

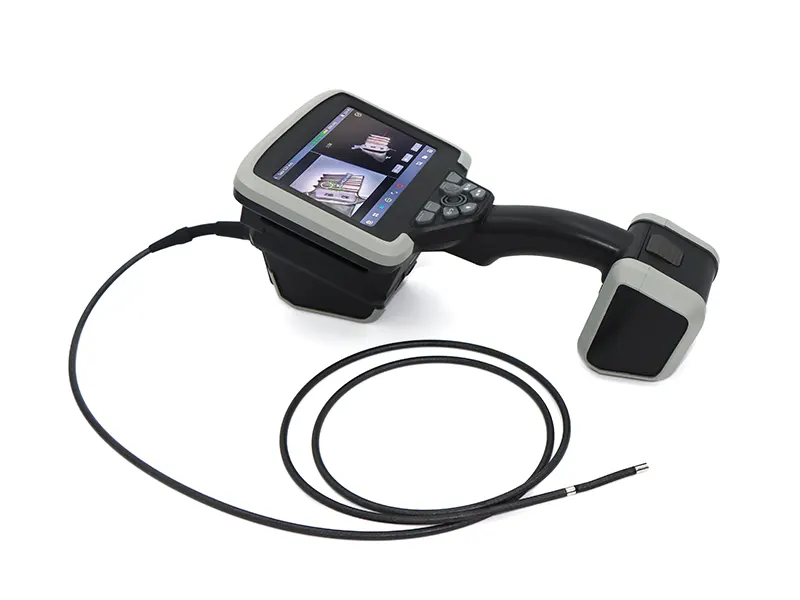

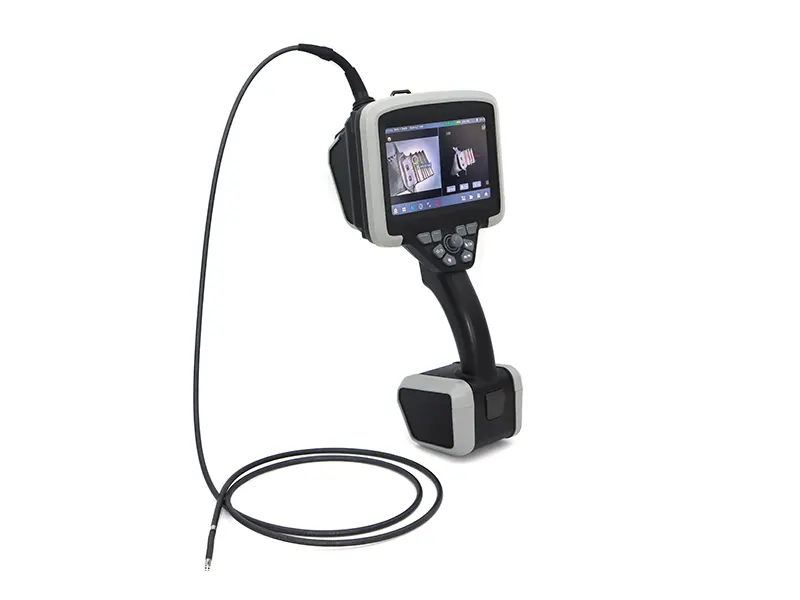

T3 3D Measurement 6mm Industrial Videoscope T3DJ60D

Pipeline advantages

Enter Easily

The 6mm inspection probe is built for versatility, delivering exceptional imaging clarity in a wide range of industrial inspections.

Arrive Conveniently

4 way, 360°articulation ensures precise control in hard to reach areas.

See Clearly

The 6mm probe provides wide viewing angle up to 1280*720 pixels.Our powerful Optical Fiber lighting deliver bright, clear visuals, very durable.

Applications:

It has a wide range of applications and can be used in a variety of endoscope detection scenarios. Such as Automobile Manufacturing, Medical Pipeline, Ship Power, Municipal Drainage, Mechanical Casting, Building Bridges, Precision Casting, Special Inspection Industry, Aerospace, Stone Chemical Industry, Energy Power, Railway Transit, Search and Rescue, Security Inspection and Drug Control.

T3 series is designed specifically for complex industrial conditions, it allows accurate and visual detection of hidden spaces with its multiple 3D measurement functions. Portable, modular design makes the device convenient and easy to take and operate, also it could equip with more probes like direct measurement, side measurement and replaceable tips.

Technical Advantage:

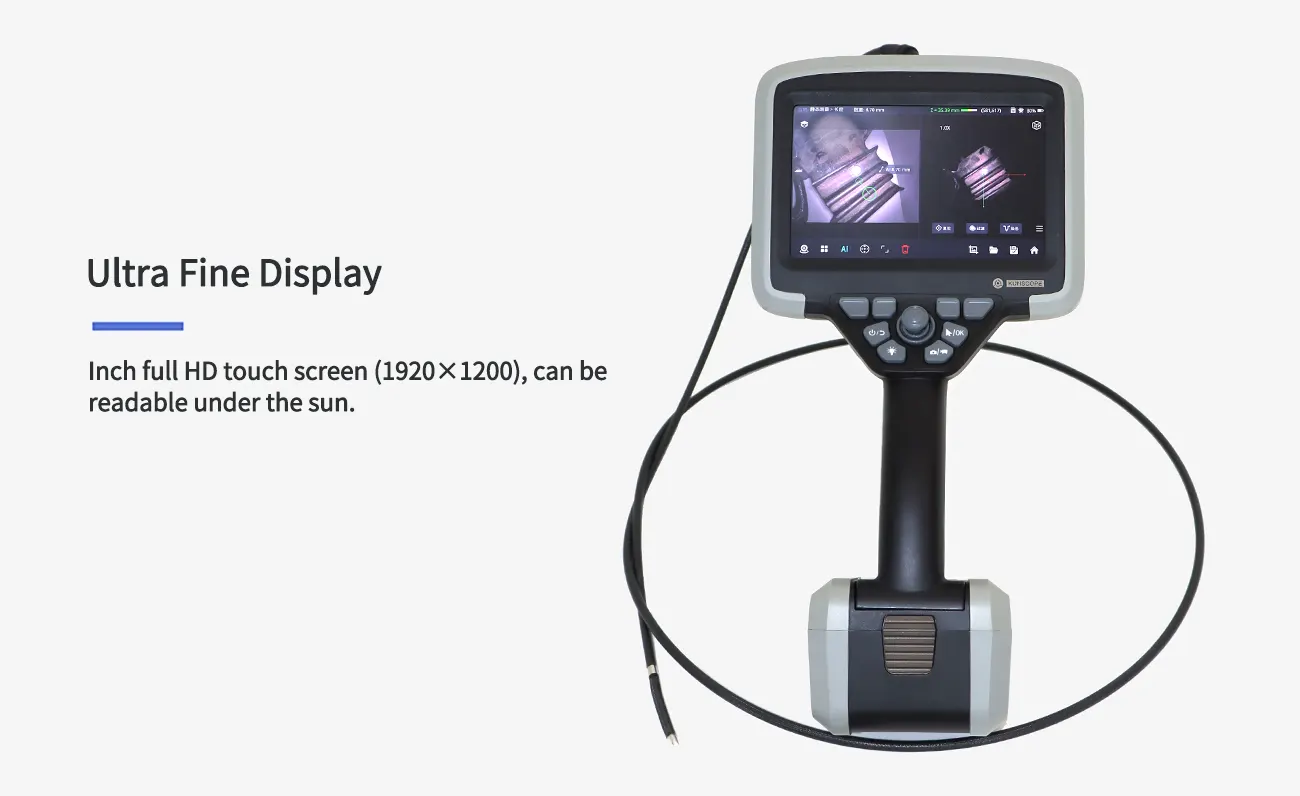

Ultra Fine Display
7-inch full HD touch screen (1920×1200), can be readable under the sun. True million-level high-sensitivity image sensor ensures clear and detailed images

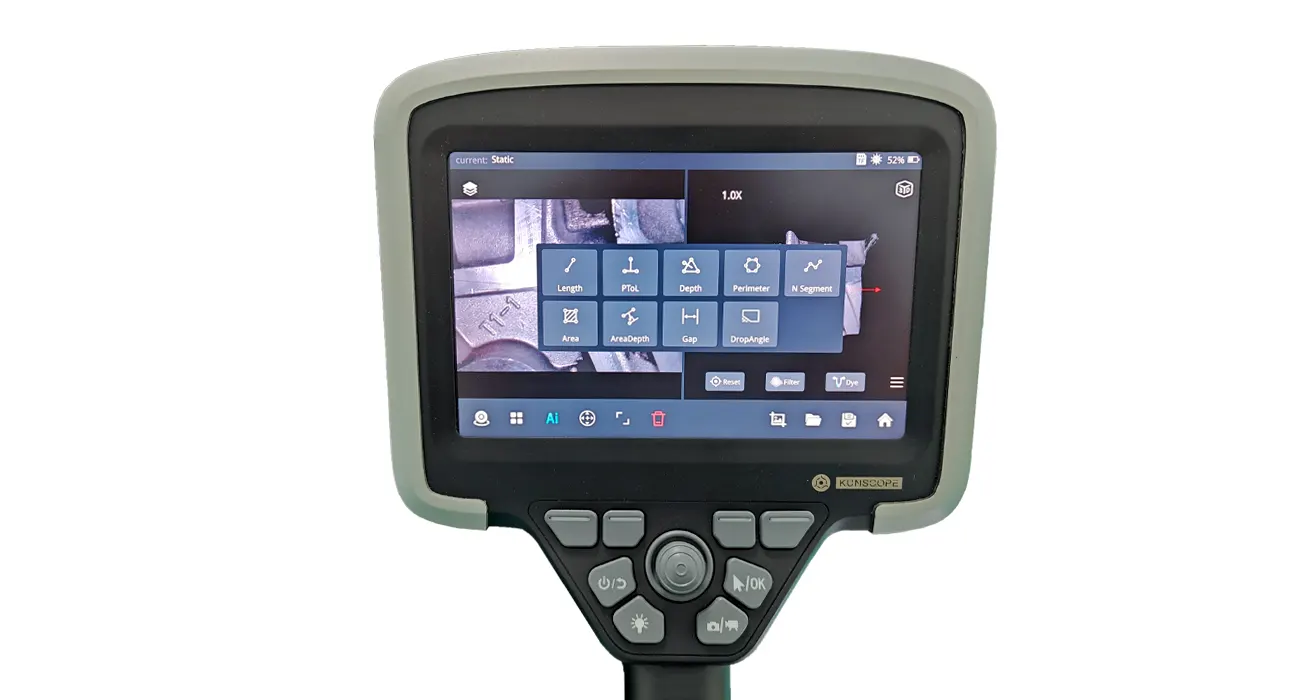

Real-time 3D Measurement

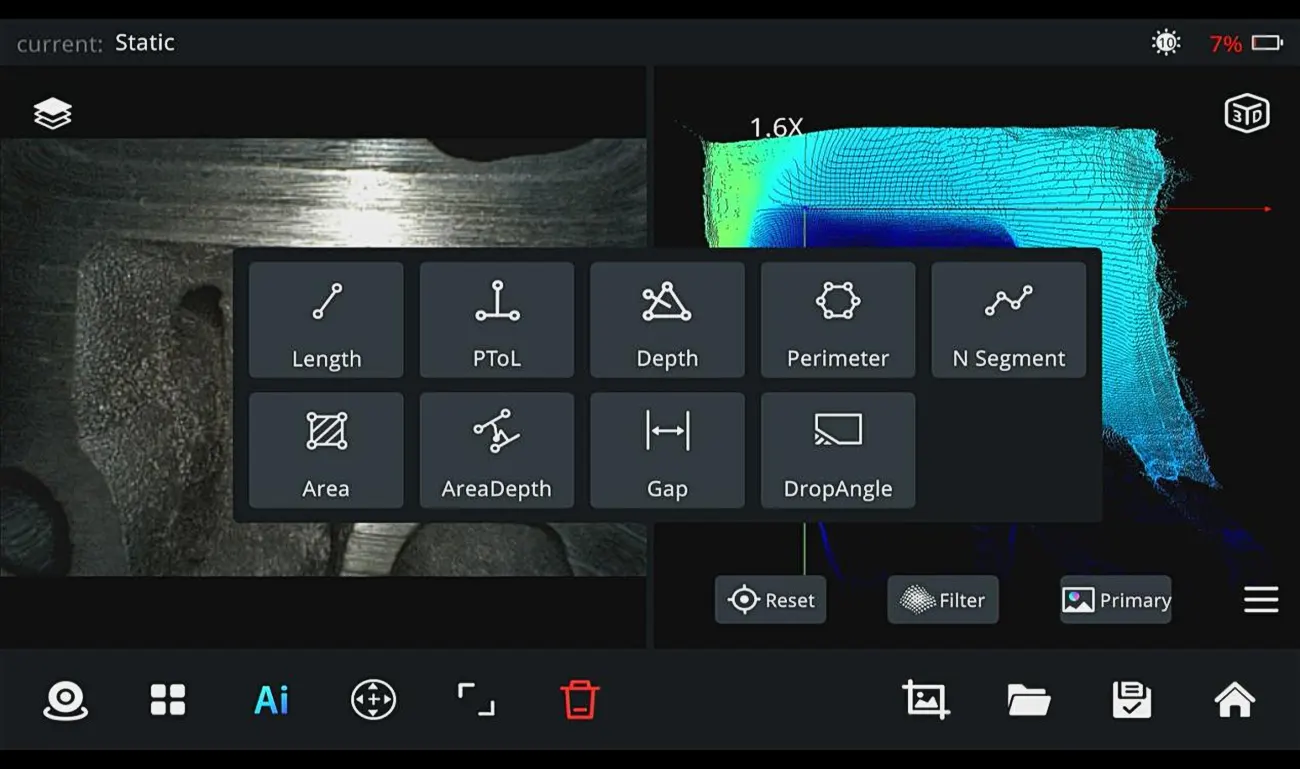

Dual camera for remote visual inspection, covering all kinds of measurement requirements, such as length, point-to-line, depth, depth profile, area, angle and multi-segment, accuracy≥95%

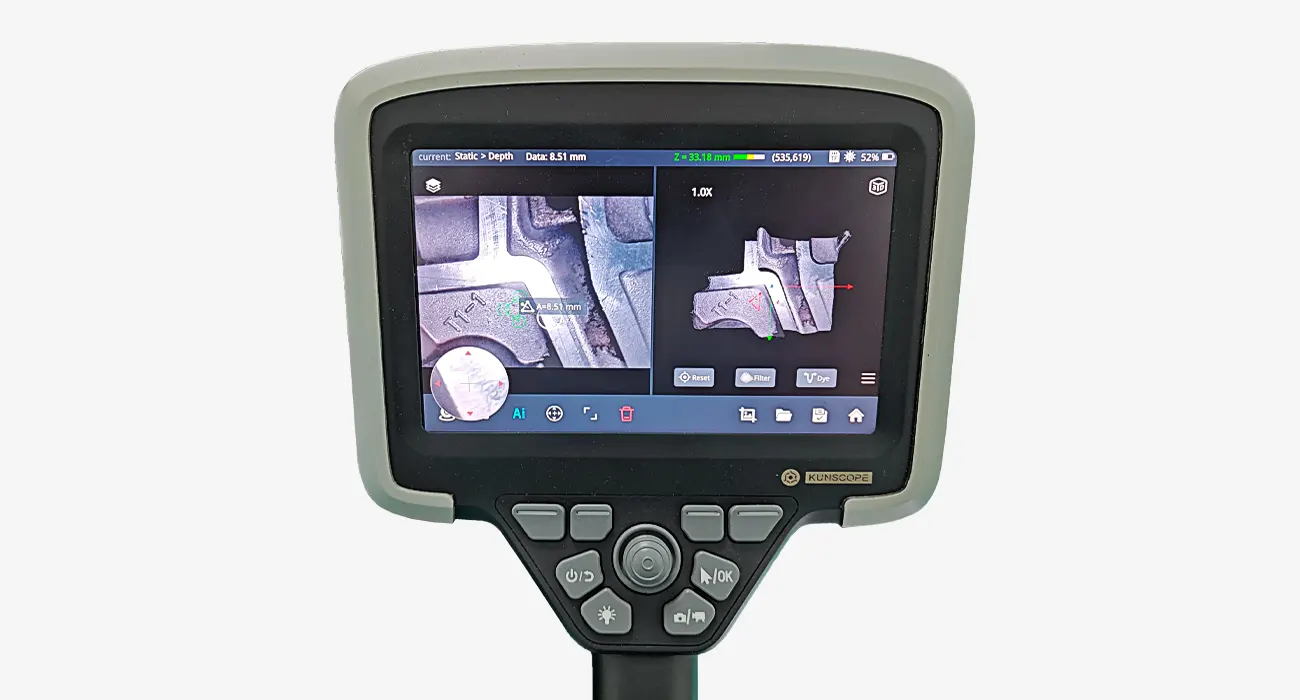

3D Modeling
Point cloud diagrams can be generated based on the measurement interface, and three-dimensional modeling can more intuitively reflect the user's selected point measurement position and angle, and assist in determining the overall internal structure of the workpiece

Precision Control
The original mechanical joystick + touch dual-mode system, the joystick can be set to mouse control once you are not convenient to touch the screen

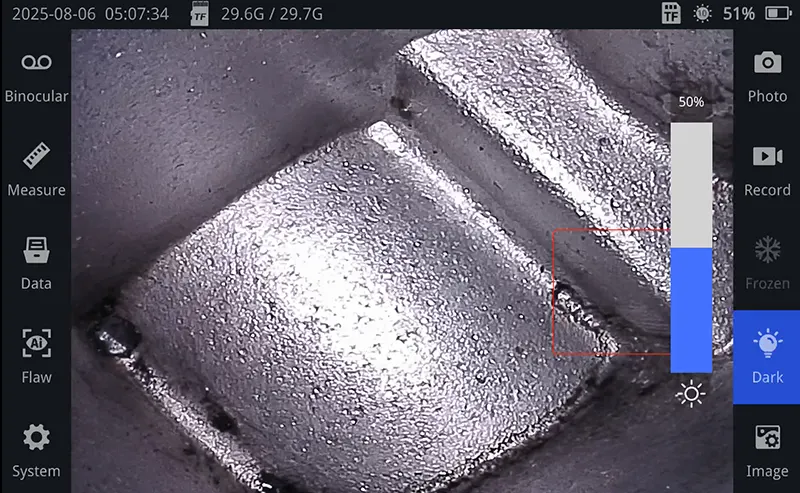

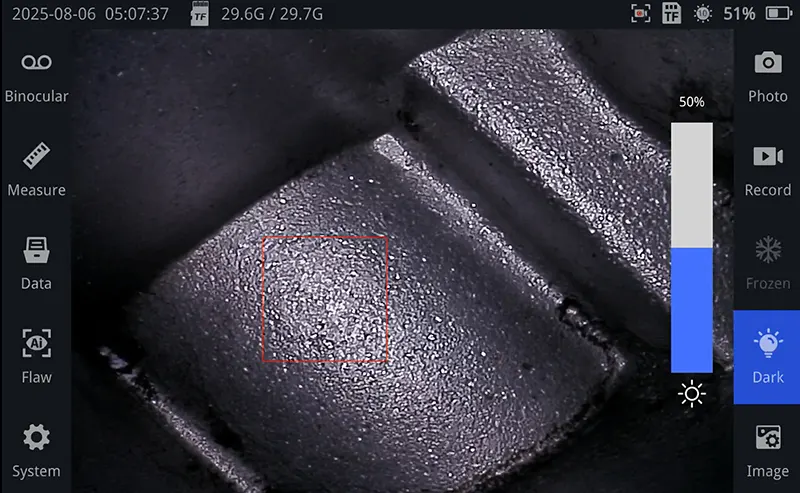

Excellent Image Gain Effect
After detecting the reflective material, the image will be adjusted through the local glare suppression function

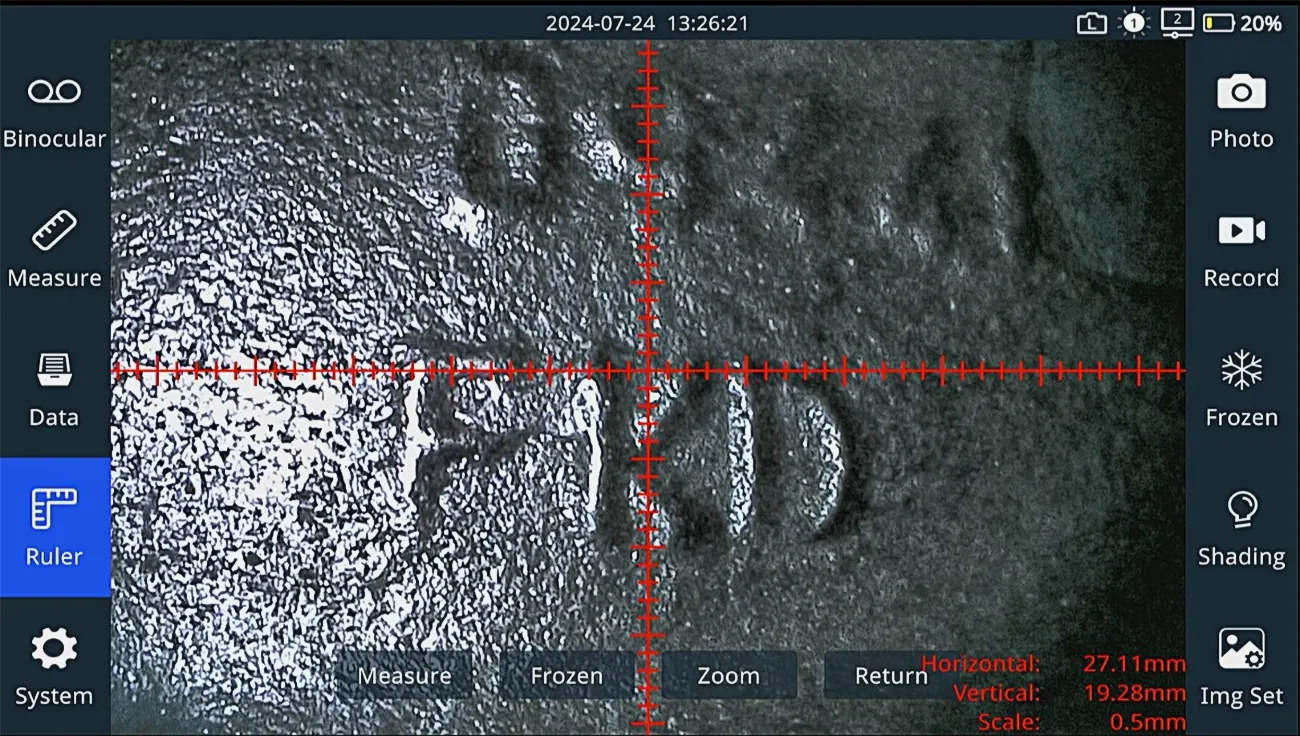

Variable Scale
The first variable scale technology to measure plane defects without calibration. The measurement scale can be automatically adjusted according to the real-time measured distance with an error of less than 10%

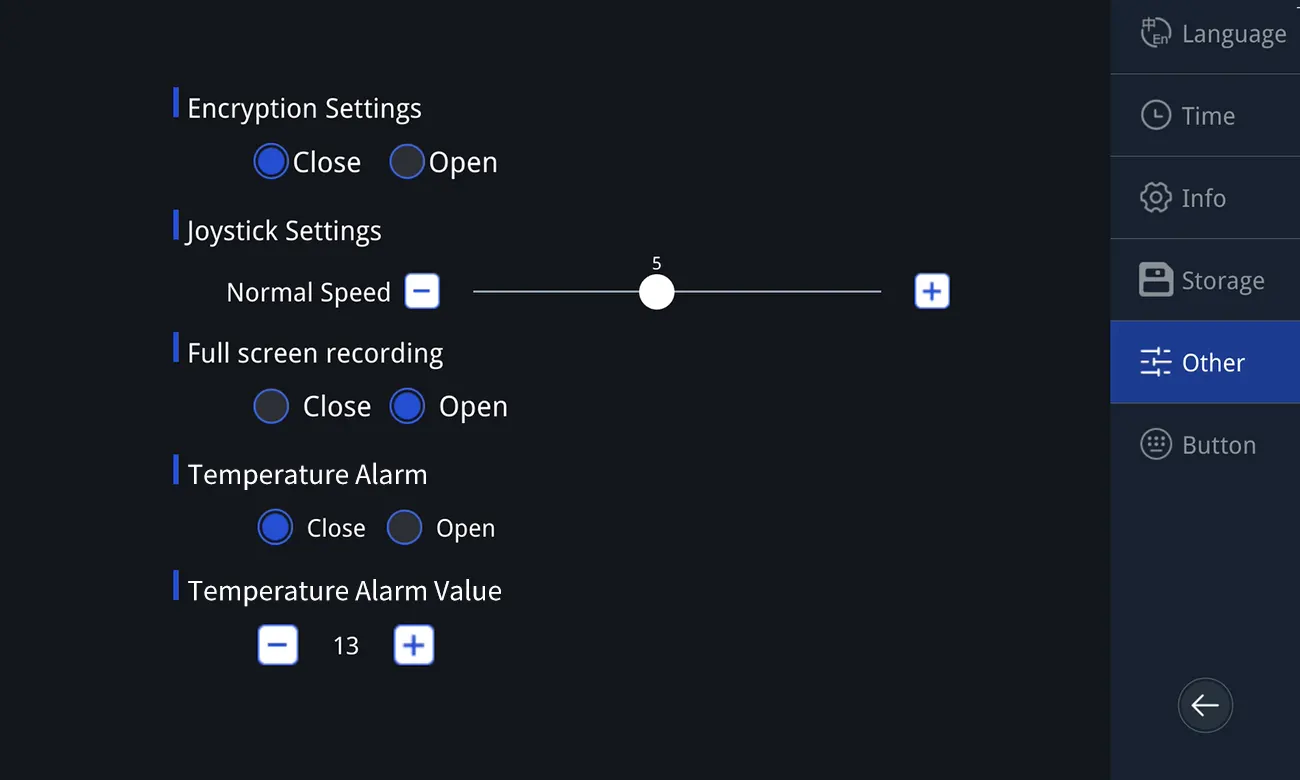

Lens Ambient Temperature Detection Function
This temperature is the temperature near the lens. When it reaches the threshold set in the [System Settings] temperature setting, the instrument's buzzer will sound.

Long Battery Life
